ROTAVATOR- Product Features
- It has a Semi automatic dual speed gear box, which provides option of 2 different rotor rpm for different soil conditions and applications.
- We can easily change the rotor speed with the lever attached , without removing the back cover of the gear box.
- Heavy duty side gear drive in oil bath which ensures high performance in all working conditions.
- Heavy duty spring assembly in plank which ensures perfectly leveled and finished seedbed.
- It can loosen & aerate soil up to 7 inches deep.
- Specially Designed Tampered Blades Made Of High Quality Steel.
- Gear Helps It To Work Smoothly & Efficiently.
- Frame Made Of Heavy Duty Pipes.
- Export Quality Multi Gear & Heavy Duty Gear Box.
- Nuts & Bolts Made Of High Tensile Steel.
- Every Part Made With Computerised CNC Machine.

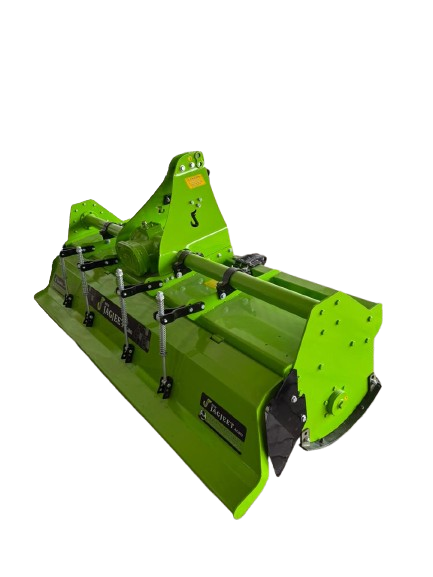

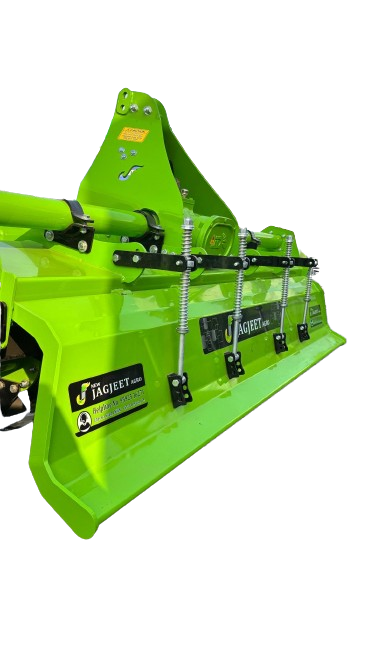

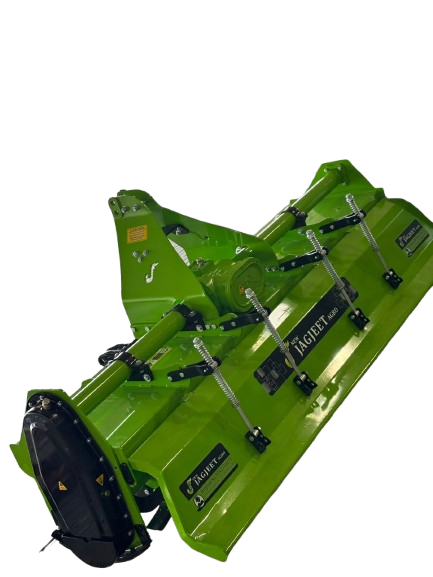

ROTAVATOR
| DESCRIPTION | SIZE 5ft | SIZE 6ft | SIZE 7ft | SIZE 8ft | SIZE 9ft | SIZE 10ft |
|---|---|---|---|---|---|---|
| Model | NJA7117RT5 | NJA7117RT6 | NJA7117RT7 | NJA7117RT8 | NJA7117RT9 | NJA7117RT 10 |
| Working Width | 1520mm | 1830mm | 2100mm | 2490mm | 2730mm | 3040mm |
| Type Of Blade | L/C Type | L/C Type | L/C Type | L/C Type | L/C Type | L/C Type |
| No. Of Blades | 42 | 48 | 54 | 60 | 72 | 78 |
| Material Of Blade | Boron Steel | Boron Steel | Boron Steel | Boron Steel | Boron Steel | Boron Steel |
| Diameter Of Rotor Pipe | 90mm | 90mm | 90mm | 90mm | 90mm | 90mm |
| Hp Required | 35-40 | 35-40 | 40-45 | 45-55 | 55-65 | 65-75 |
| Gear Box | Multi Speed | Multi Speed | Multi Speed | Multi Speed | Multi Speed | Multi Speed |
| Side Drive | Gear Drive | Gear Drive | Gear Drive | Gear Drive | Gear Drive | Gear Drive |
| Weight | 420-440kg | 440-480kg | 490-520kg | 550-600kg | 600-650kg | 630-670kg |
